Formsprag- AS Series Clutches

  • Home
  • General Purpose Clutch Products

General Purpose Clutch Products

Quick Links

Formsprag- AS Series Clutches

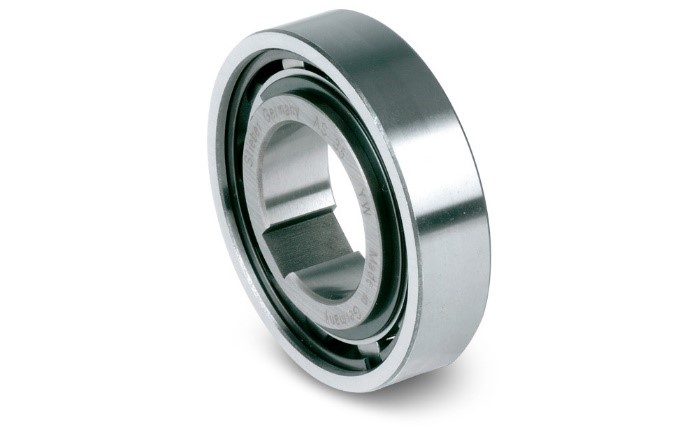

Model AS is a ramp & roller type clutch, non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing are required. Nominal outside dimensions are the same as a Series 62 ball bearing.

Product Features

  • The inner race is keyed to the shaft (except for size 6 mm bore).
  • The outer race has a positive r6 tolerance to give a press fit in a H7 housing.
  • Can accept an axial misalign- ment of inner and outer race of ± S/2.
  • These clutches are oil dipped at the factory but must be filled to the proper level before operation.
  • This clutch is designed for oil lubrication. For grease lubrication, reduce the maximum overrunning speed to 50% of listed value.
