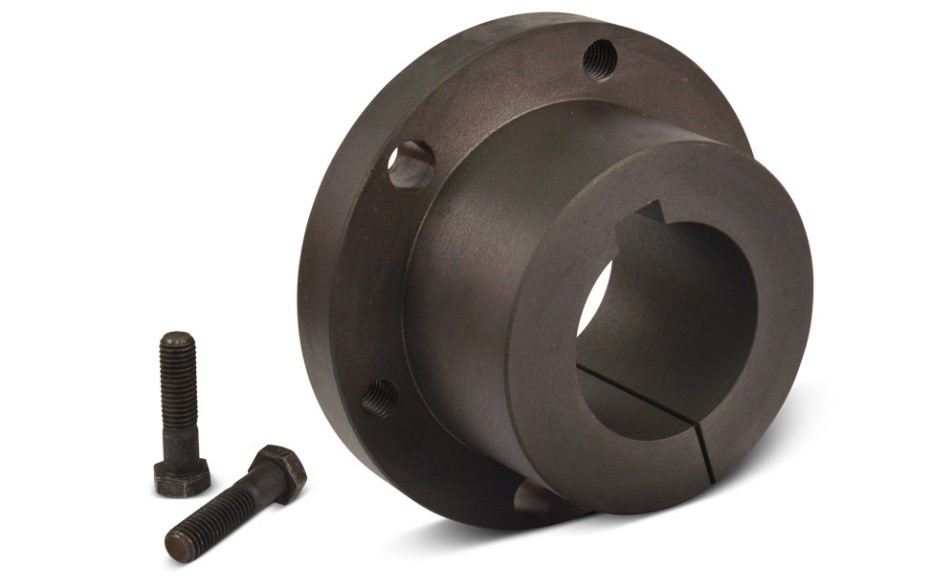

Sure-Grip Bushings-TB Wood’s

Sure-Grip Bushings-TB Wood’s

Sure-Grip Quick Detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing’s position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip bushings permit the mounting of the same mating part on shafts of different diameters, and the mounting of different sheaves on the same shaft using the same bushing.

Product Features

  • 6-hole drilling (most sizes) makes installation and removal quick and easy
  • Keyseat 180° from split. Precise taper (3/4 in. per ft. on diameter) provides proper wedging action
  • Saw cut through flange and taper (and sometimes cut down into keyway also) to provide a true clamp fit
  • Cap screws used to secure bushings to sheave and to remove bushing from sheave
